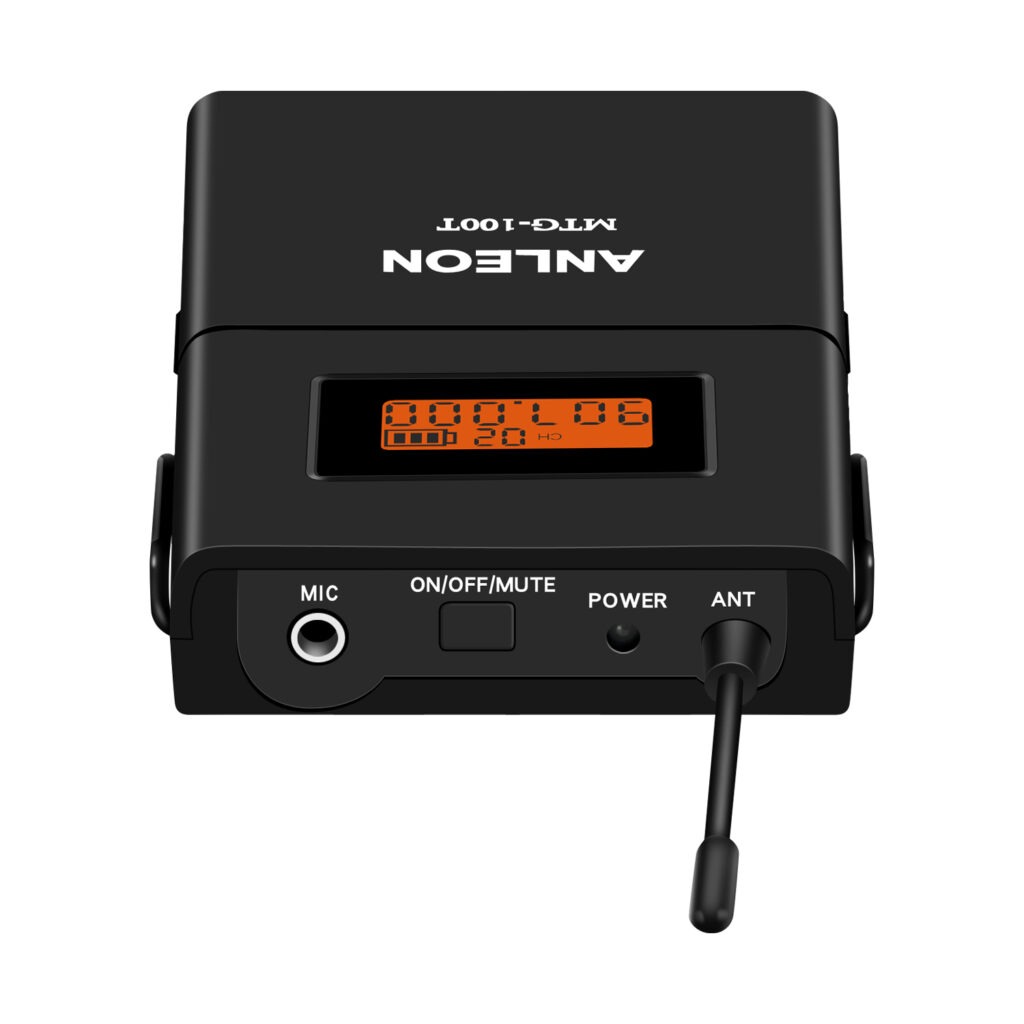

MTG-100 Wireless Tour Guide & Language Interpretation System
MTG100 is a portable short-range wireless system used to transmit an audio message from a presenter to an audience. The presenter speaks into a radio microphone transmitter and the audience use lightweight receivers to hear the message.
HOW IT WORKS FOR INTERPRETATION
The interpreter sits or stands on the periphery of the group, wears a battery-operated portable transmitter, listens to the proceedings and whispers the interpretation into a microphone (head-worn or lapel). This signal is transmitted to delegates who listen on wireless receivers within a range of about 100 m, depending on the model.
The receivers are multi-channel and each language requires a separate transmitter. Interpreters working together as a team for a single language must share a single transmitter and microphone.
Usefull features.
PLL frequency synthesis technique for stable signal transmission.
UHF frequency range with 6 selectable channels
One transmitter can be operated with multiple receivers within the operating range
Dynamic expanding circuit for high S/N ratio.
Complex interference-free circuit for using more than 4 sets simultaneously without mutual interference
Both transmitter and receiver use LCD-display to indicate frequency,channel,level status
Long operating range up to 100m
Wireless tour guiding,simultaneous translation, audio-visual eduation
Carrier Frequency:902 907 912 917 922 927Mhz or 650-680Mhz
Frequency Response:30Hz—15KHz
Number of Channels:6
Transmit Power:<10dBmS/N
Ratio:>50dB
Operating Range:>100m
Область применения
- Guided tours
- Press conferences
- Museum tours
- Trade fair events
- Interpreting/ multi-language interpretation
- Assisitve listening
- Receiving commands such as when playing sports
